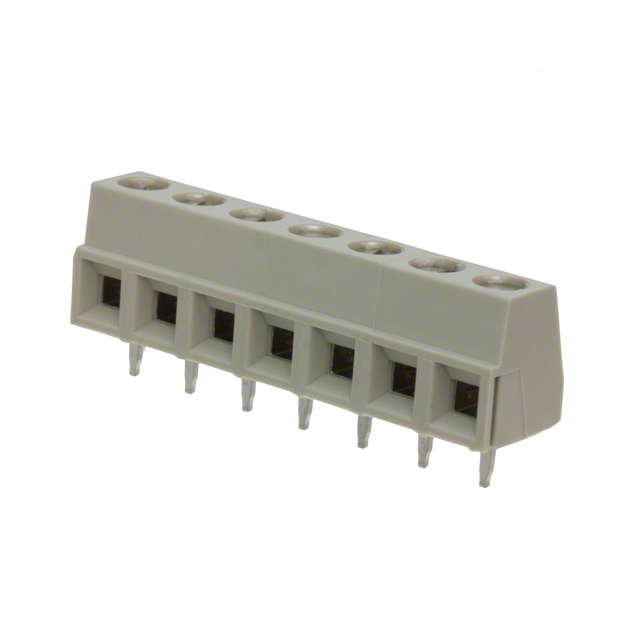

| Part Number | 1546216-7 | 1546215-7 | 1546216-2 | 1546216-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 |
| Positions Per Level | 7 | 7 | 2 | 3 |
| Pitch | 0.197" (5.00mm) | 0.100" (2.54mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 13.5 A | 10 A | 13.5 A | 13.5 A |
| Voltage | 300 V | 150 V | 300 V | 300 V |
| Wire Gauge | 15-17 AWG | 16-30 AWG | 15-17 AWG | 15-17 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) | - | Interlocking (Side) | Interlocking (Side) |
| Color | Gray | Gray | Gray | Gray |
