Please send RFQ , we will respond immediately.

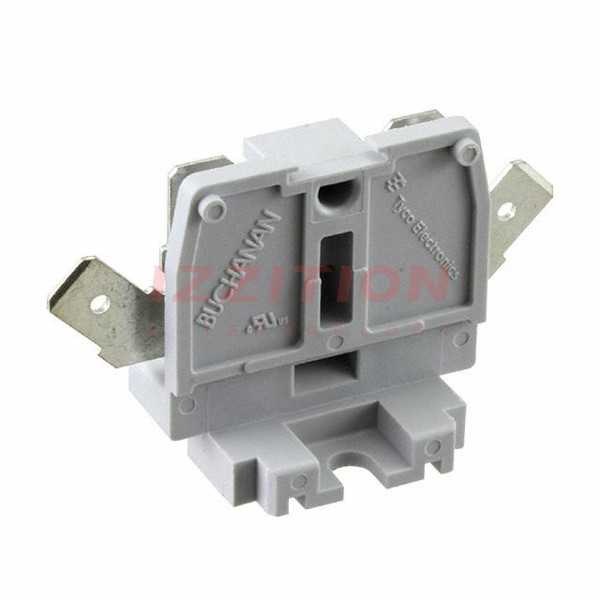

| Part Number | 1546149-1 | 1546143-1 | 1546144-1 | 1546147-1 | 1546148-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | NEMA Open Construction | NEMA Open Construction | NEMA Open Construction | NEMA Open Construction | NEMA Open Construction |
| Mounting Type | Direct Mount | Direct Mount | Channel, DIN Rail Mount | Direct Mount | Channel, DIN Rail Mount |
| Number of Positions | 4 | 2 | 2 | 2 | 2 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Terminal - Width | 10.9mm | 10.9mm | 10.9mm | 10.9mm | 10.9mm |
| Termination Style | Quick Connect Tabs | Screw | Screw | Tubular Screw | Tubular Screw |
| Current - IEC | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - |
| Current - UL | 20 A | 35 A | 15 A | 50 A | 50 A |
| Voltage - UL | 300 V | 600 V | 600 V | 600 V | 600 V |
| Wire Gauge or Range - AWG | - | 8-18 AWG | 14-22 AWG | 8-22 AWG | 8-22 AWG |
| Wire Gauge or Range - mm² | - | - | - | - | - |
| Features | - | - | - | - | - |
| Housing Color | Gray | Gray | Gray | Gray | Gray |
