1546105-5
  • Share:

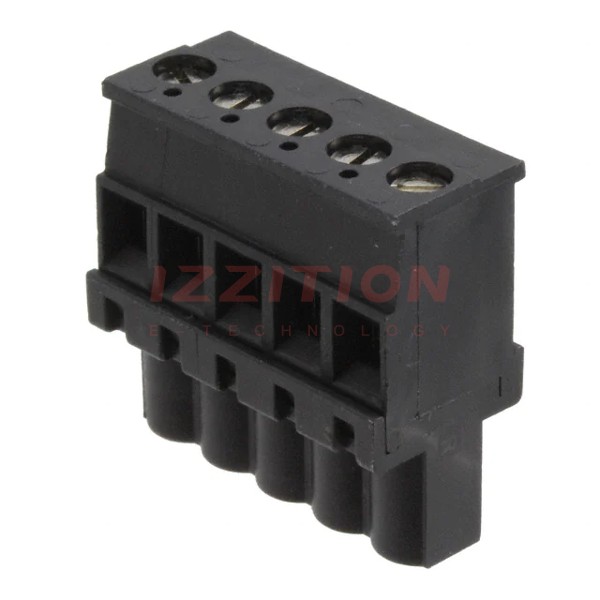

TE Connectivity AMP Connectors 1546105-5

Manufacturer No:
1546105-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1546105-5 Datasheet
ECAD Model:
-
Description:
TERM BLOCK PLUG 5POS 5.08MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Plug, Female Sockets
Number of Positions:5
Positions Per Level:5
Number of Levels:1
Pitch:0.200" (5.08mm)
Header Orientation:-
Plug Wire Entry:270°
Termination Style:Screw - Rising Cage Clamp
Mounting Type:Free Hanging (In-Line)
Current - IEC:-
Voltage - IEC:-
Current - UL:15 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:12-30 AWG
Wire Gauge or Range - mm²:0.05-3mm²
Color:Black
Operating Temperature:-40°C ~ 110°C
Contact Mating Finish:Tin
Features:Retention Latches (Non-Wire Side)
0 Remaining View Similar

In Stock

$6.70
3

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1546105-5 1546105-8   1546105-9   1546105-2   1546105-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active
Type Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets Plug, Female Sockets
Number of Positions 5 8 9 2 3
Positions Per Level 5 8 9 2 3
Number of Levels 1 1 1 1 1
Pitch 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm) 0.200" (5.08mm)
Header Orientation - - - - -
Plug Wire Entry 270° 270° 270° 270° 270°
Termination Style Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Current - IEC - - - - -
Voltage - IEC - - - - -
Current - UL 15 A 15 A 15 A 15 A 15 A
Voltage - UL 300 V 300 V 300 V 300 V 300 V
Wire Gauge or Range - AWG 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG 12-30 AWG
Wire Gauge or Range - mm² 0.05-3mm² 0.05-3mm² 0.05-3mm² 0.05-3mm² 0.05-3mm²
Color Black Black Black Black Black
Operating Temperature -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C -40°C ~ 110°C
Contact Mating Finish Tin Tin Tin Tin Tin
Features Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side) Retention Latches (Non-Wire Side)
