1534531-1
  • Share:

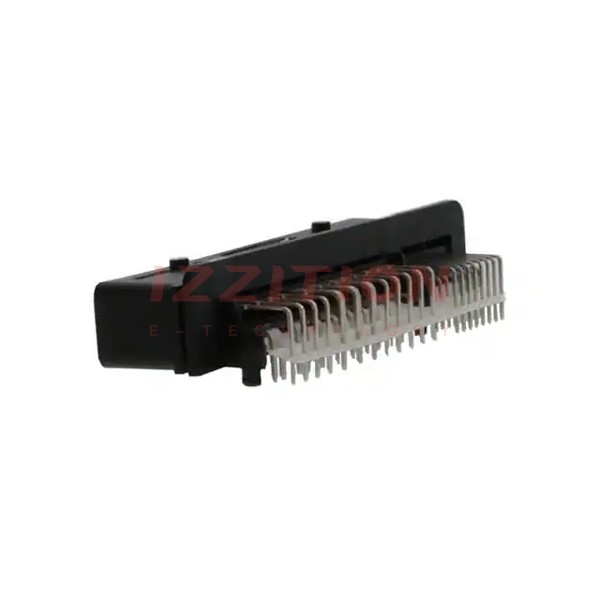

TE Connectivity AMP Connectors 1534531-1

Manufacturer No:
1534531-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1534531-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 38POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:-
Number of Positions:38
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.642" (16.30mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:-
Features:Board Lock
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:12V
0 Remaining View Similar

In Stock

$12.14
35

Please send RFQ , we will respond immediately.
