Please send RFQ , we will respond immediately.

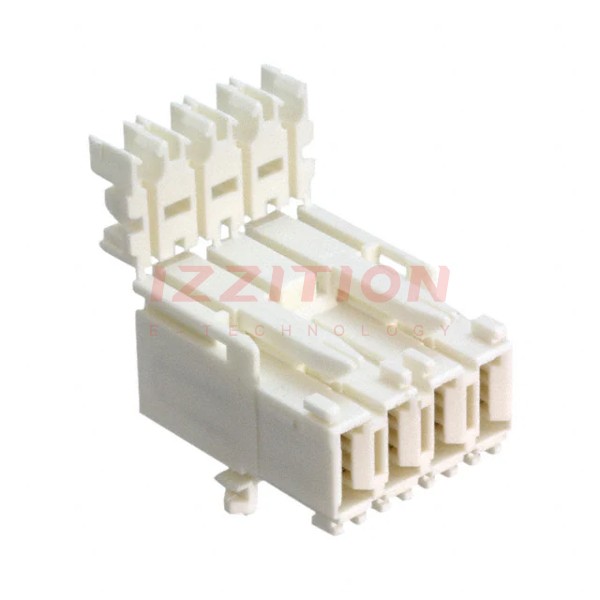

| Part Number | 1534072-4 | 1534073-4 | 1534072-5 | 1534072-7 | 1534077-4 | 1534075-4 | 1534072-6 | 1534072-1 | 1534072-2 | 1534072-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Blade Pin | Blade Pin | Blade Pin | Blade Pin | Tab | Blade Pin | Blade Pin | Blade Pin | Blade Pin | Blade Pin |
| Number of Positions | 4 | 4 | 5 | 7 | 4 | 4 | 6 | 1 | 2 | 3 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Locking Ramp | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete | Discrete | Discrete | Discrete | Discrete | Discrete | Discrete | Discrete | Discrete | Discrete |
| Wire Gauge | - | - | - | - | - | - | - | - | - | - |
| Features | Dual Wire Exit | Dual Wire Exit | Dual Wire Exit | Dual Wire Exit | - | Mates to PCB | Dual Wire Exit | Dual Wire Exit | Dual Wire Exit | Dual Wire Exit |
| Contact Finish | Tin | Tin | Tin | Tin | - | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - | - | - | - | - | - | - |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
