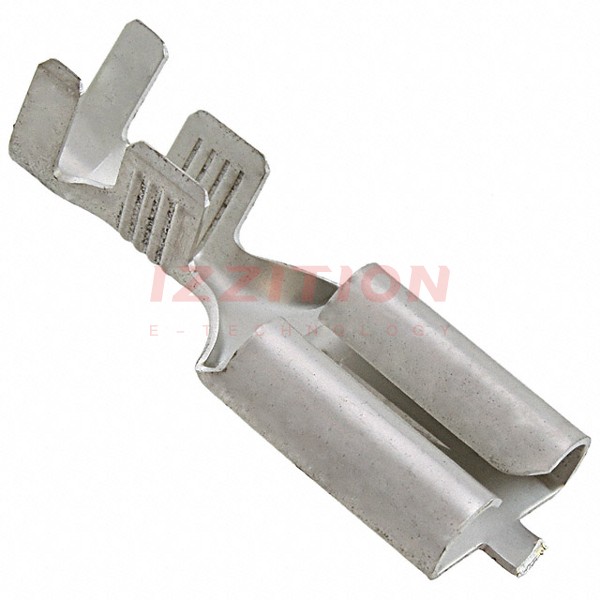

| Part Number | 151667-4 | 151667-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Tab Thickness | 0.048" (1.22mm) | 0.048" (1.22mm) |
| Tab Length | 0.420" (10.67mm) | 0.470" (11.94mm) |
| Length - Overall | 1.040" (26.42mm) | 1.040" (26.42mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 10-11.5 AWG | 10-11.5 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Phosphor Bronze | Brass |
| Contact Finish | - | Tin |
