Please send RFQ , we will respond immediately.

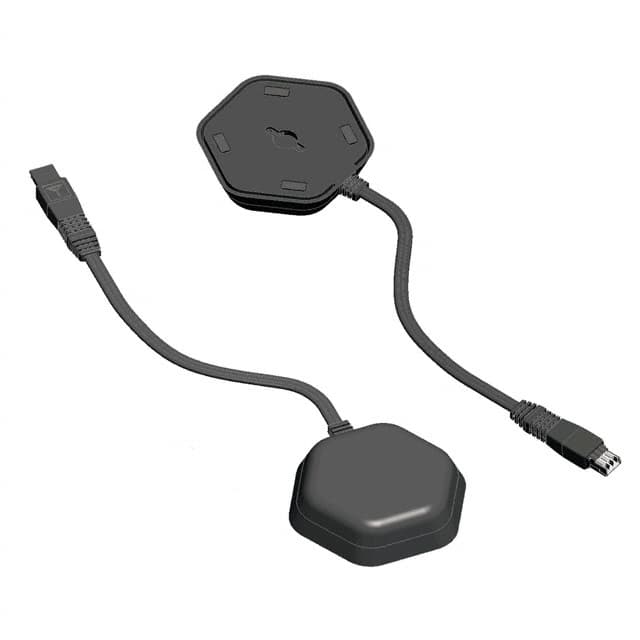

| Part Number | 1513711-1 | 1513712-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | Wide Band | Wide Band |
| Frequency (Center/Band) | 2.5GHz, 3.6GHz, 5.4GHz | 2.5GHz, 3.6GHz, 5.4GHz |
| Frequency Range | 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 5.875GHz | 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 5.875GHz |
| Antenna Type | Module | Module |
| Number of Bands | 3 | 3 |
| VSWR | 2.5 | 2.5 |
| Return Loss | - | - |
| Gain | 0dBi, 3dBi, 2dBi | 0dBi, 3dBi, 2dBi |
| Power - Max | 10 W | 10 W |
| Features | Cable - 800mm | Cable - 800mm |
| Termination | QSL Type 3 | QSL Type 4 |
| Ingress Protection | - | - |
| Mounting Type | - | - |
| Height (Max) | 0.931" (23.65mm) | 0.931" (23.65mm) |
| Applications | Bluetooth, WiMax™, WLAN, Zigbee™ | Bluetooth, WiMax™, WLAN, Zigbee™ |
