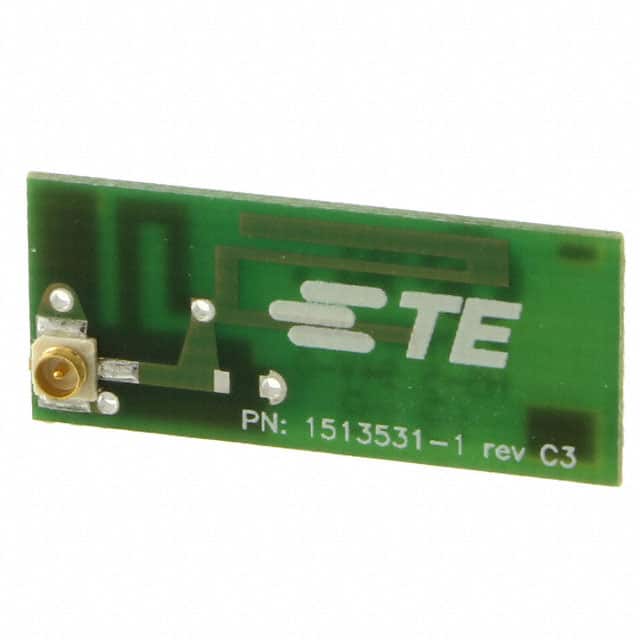

| Part Number | 1513531-1 | 1513431-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.4GHz, 5GHz | 2.4GHz |
| Frequency Range | 2.4GHz ~ 2.483.5GHz, 4.9GHz ~ 5.9GHz | 2.4GHz ~ 2.483.5GHz |
| Antenna Type | PCB Trace | PCB Trace |
| Number of Bands | 2 | 1 |
| VSWR | 2.5 | 2 |
| Return Loss | - | - |
| Gain | 2dB | 0dBi |
| Power - Max | - | 10 W |
| Features | - | - |
| Termination | Solder | Solder |
| Ingress Protection | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Height (Max) | 0.031" (0.80mm) | 0.031" (0.79mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
