Please send RFQ , we will respond immediately.

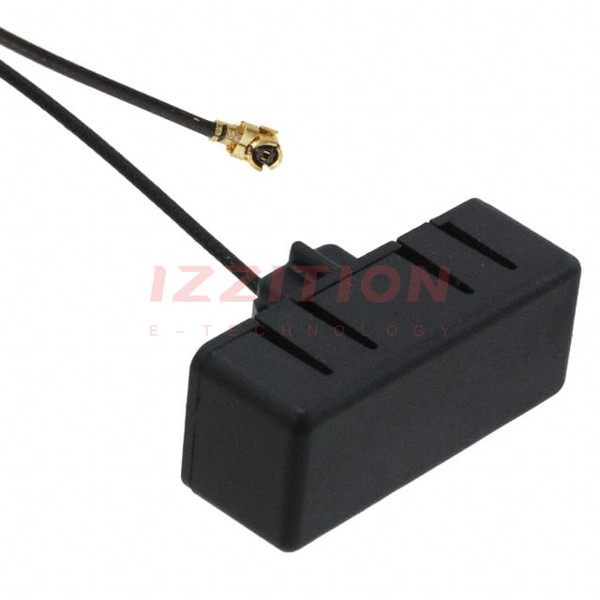

| Part Number | 1513472-5 | 1513472-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.5GHz | 2.44GHz, 5.51GHz |
| Frequency Range | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | 2.4GHz ~ 2.4835GHz, 5.15GHz ~ 5.875GHz |
| Antenna Type | Module | Module |
| Number of Bands | 2 | 2 |
| VSWR | 3 | 3 |
| Return Loss | - | - |
| Gain | 3dBi | 3dBi |
| Power - Max | 10 W | 10 W |
| Features | Cable - 360mm | Cable - 595mm |
| Termination | U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - | - |
| Mounting Type | Panel Mount | Panel Mount |
| Height (Max) | 0.394" (10.00mm) | 0.394" (10.00mm) |
| Applications | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
