Please send RFQ , we will respond immediately.

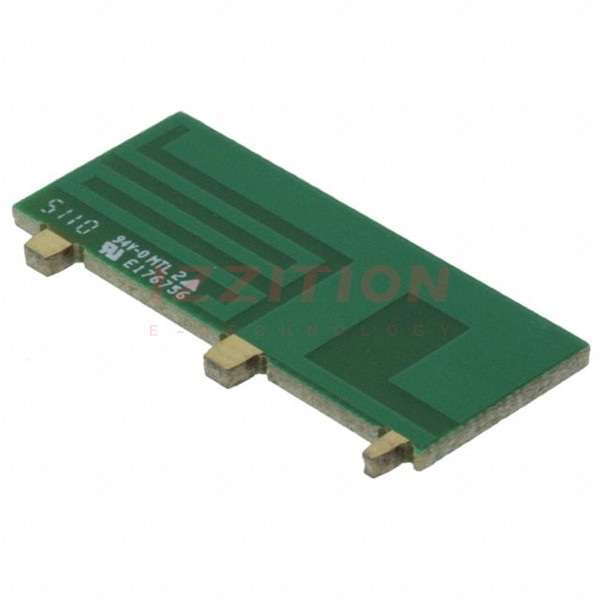

| Part Number | 1513434-1 | 1513634-1 | 1513454-1 | 1513430-1 | 1513431-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Active | Active |
| RF Family/Standard | - | Navigation | - | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (1GHz ~ 2GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 920MHz, 1.8GHz | 1.575GHz | 1.9GHz | 2.4GHz | 2.4GHz |
| Frequency Range | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | 1.565GHz ~ 1.585GHz | 1.88GHz ~ 1.9GHz | 2.4GHz ~ 2.483.5GHz | 2.4GHz ~ 2.483.5GHz |
| Antenna Type | PCB Trace | Puck | Puck | PCB Trace | PCB Trace |
| Number of Bands | 2 | 1 | 1 | 1 | 1 |
| VSWR | 2.5 | 3 | 3 | 2 | 2 |
| Return Loss | - | - | - | - | - |
| Gain | 0dBi, 1dBi | 0dBi | 0dB | 0dBi | 0dBi |
| Power - Max | 10 W | 10 W | - | 10 W | 10 W |
| Features | - | - | - | - | - |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Ingress Protection | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.062" (1.57mm) | 0.238" (6.05mm) | 0.238" (6.05mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Applications | - | GPS | - | Bluetooth, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
