Please send RFQ , we will respond immediately.

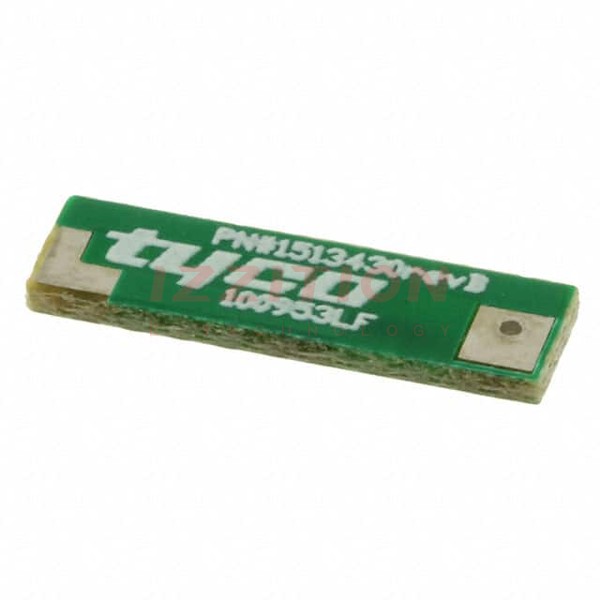

| Part Number | 1513430-1 | 1513431-1 | 1513430-2 | 1513434-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | 802.15.4, Bluetooth, WiFi | - |
| Frequency Group | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 2.4GHz | 2.4GHz | 2.4GHz | 920MHz, 1.8GHz |
| Frequency Range | 2.4GHz ~ 2.483.5GHz | 2.4GHz ~ 2.483.5GHz | 2.4GHz ~ 2.483.5GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz |
| Antenna Type | PCB Trace | PCB Trace | PCB Trace | PCB Trace |
| Number of Bands | 1 | 1 | 1 | 2 |
| VSWR | 2 | 2 | 2 | 2.5 |
| Return Loss | - | - | - | - |
| Gain | 0dBi | 0dBi | 0dBi | 0dBi, 1dBi |
| Power - Max | 10 W | 10 W | 10 W | 10 W |
| Features | - | - | - | - |
| Termination | Solder | Solder | Solder | Solder |
| Ingress Protection | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.062" (1.57mm) |
| Applications | Bluetooth, WLAN, Zigbee™ | Bluetooth, Wi-Fi, WLAN, Zigbee™ | Bluetooth, WLAN, Zigbee™ | - |
