Please send RFQ , we will respond immediately.

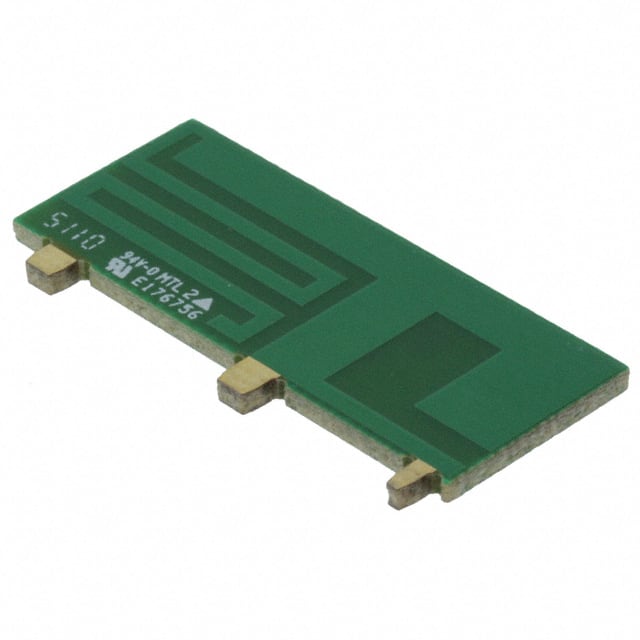

| Part Number | 1513168-1 | 1513169-1 | 1513164-1 | 1513165-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| RF Family/Standard | 802.15.4 | 802.15.4, Cellular | 802.15.4, Bluetooth, WiFi | - |
| Frequency Group | UHF (300MHz ~ 1GHz) | UHF (300MHz ~ 1GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (300MHz ~ 1GHz) |
| Frequency (Center/Band) | 915MHz | 850MHz | 2.4GHz, 5.5GHz | 920MHz |
| Frequency Range | 902MHz ~ 928MHz | 824MHz ~ 894MHz | 2.4GHz ~ 2.483.5GHz, 5.15GHz ~ 5.875GHz | 880MHz ~ 960MHz |
| Antenna Type | PCB Trace | PCB Trace | Molded | PCB Trace |
| Number of Bands | 1 | 1 | 2 | 1 |
| VSWR | 2 | 2.5 | 2.5 | 2.5 |
| Return Loss | - | - | - | - |
| Gain | 0dBi | 2dBi | 4dBi | 0dB |
| Power - Max | 10 W | 10 W | 10 W | - |
| Features | - | - | - | - |
| Termination | Solder | Solder | Solder | Solder |
| Ingress Protection | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Surface Mount |
| Height (Max) | 0.600" (15.24mm) | 0.600" (15.24mm) | 0.236" (6.00mm) | 0.595" (15.11mm) |
| Applications | ZigBee™ | GSM, ZigBee™ | Bluetooth, WLAN, Zigbee™ | - |
