Please send RFQ , we will respond immediately.

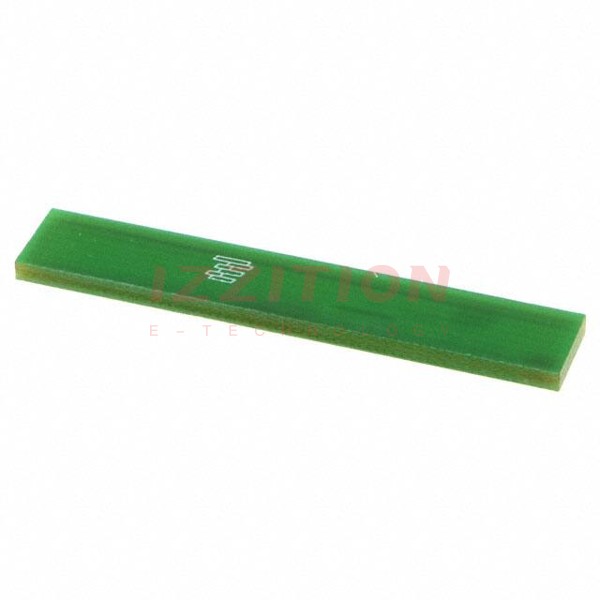

| Part Number | 1513156-1 | 1513156-2 | 1513150-1 | 1513151-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Discontinued at Digi-Key | Obsolete | Active |
| RF Family/Standard | 802.15.4 | 802.15.4 | 802.15.4, Bluetooth, WiFi | - |
| Frequency Group | UHF (300MHz ~ 1GHz) | UHF (300MHz ~ 1GHz) | UHF (2GHz ~ 3GHz) | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 915MHz | 915MHz | 2.4GHz | 2.4GHz |
| Frequency Range | 902MHz ~ 928MHz | 902MHz ~ 928MHz | 2.4GHz ~ 2.483.5GHz | - |
| Antenna Type | PCB Trace | PCB Trace | Stamped Metal | Molded |
| Number of Bands | 1 | 1 | 1 | 1 |
| VSWR | 2.5 | 2.5 | 2.5 | - |
| Return Loss | - | - | - | - |
| Gain | 1dBi | 1dBi | 4.5dB | - |
| Power - Max | 10 W | 10 W | - | - |
| Features | - | - | - | - |
| Termination | Solder | Solder | Solder | Solder |
| Ingress Protection | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Height (Max) | 0.062" (1.57mm) | 0.062" (1.57mm) | 0.118" (2.99mm) | 0.238" (6.05mm) |
| Applications | ZigBee™ | ZigBee™ | Bluetooth, WiMedia™, WLAN, Zigbee™ | - |
