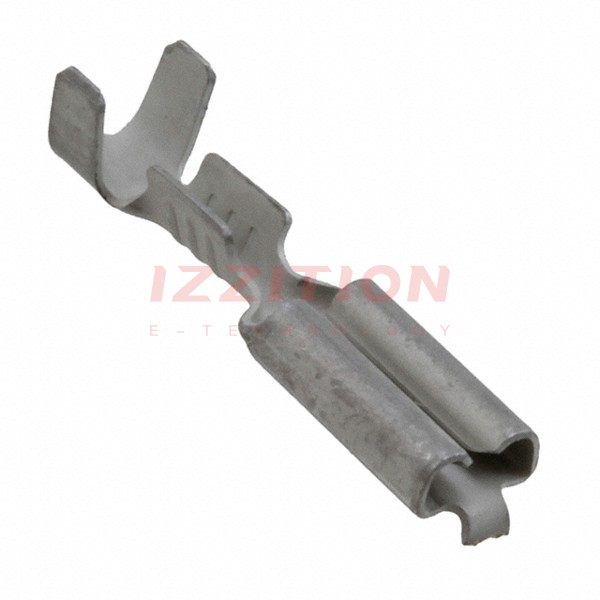

| Part Number | 150500-2 | 150500-5 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.020" (0.51mm) |
| Tab Length | 0.255" (6.48mm) | 0.255" (6.48mm) |
| Length - Overall | 0.605" (15.37mm) | 0.605" (15.37mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 20-24 AWG | 20-24 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Brass | Brass |
| Contact Finish | Tin | Silver |
