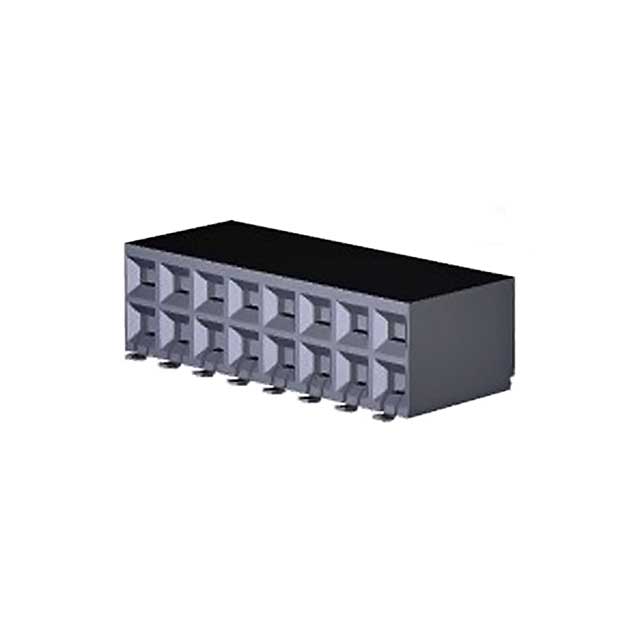

TE Connectivity AMP Connectors 147734-7

Manufacturer No:
147734-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
147734-7 Datasheet
ECAD Model:
-
Description:
CONN RCPT 16POS 0.1 GOLD SMD R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:16
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.238" (6.05mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):2A
Voltage Rating:-
0 Remaining View Similar

In Stock

-
452

Please send RFQ , we will respond immediately.
