147413-3
  • Share:

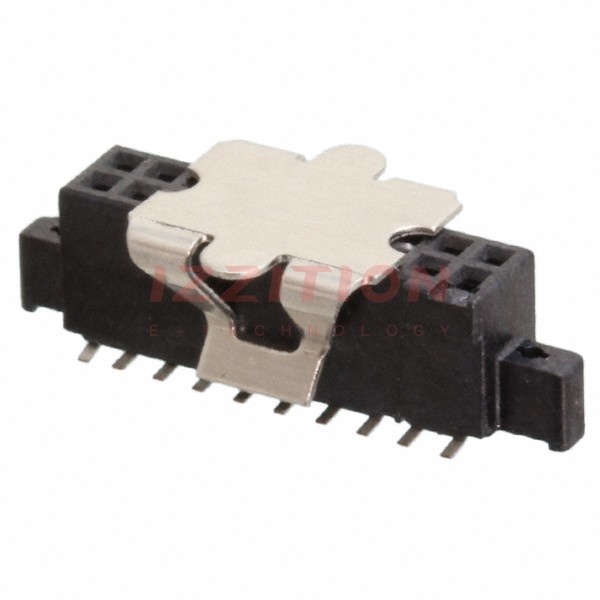

TE Connectivity AMP Connectors 147413-3

Manufacturer No:
147413-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
147413-3 Datasheet
ECAD Model:
-
Description:
CONN RCPT 20POS 0.05 GOLD SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.187" (4.75mm)
Contact Length - Post:-
Operating Temperature:-65°C ~ 105°C
Material Flammability Rating:-
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:6.35mm, 8.13mm, 9.91mm
Ingress Protection:-
Features:Board Lock, Pick and Place
Current Rating (Amps):-
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

$3.91
26

Please send RFQ , we will respond immediately.
