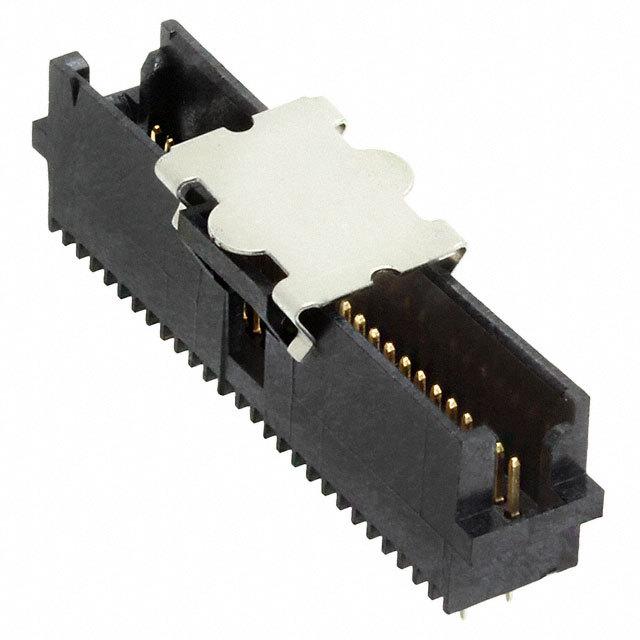

| Part Number | 147380-1 | 147382-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Number of Positions | 50 | 10 |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.050" (1.27mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Surface Mount |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Push-Pull |
| Contact Length - Mating | 0.125" (3.18mm) | 0.120" (3.05mm) |
| Contact Length - Post | 0.100" (2.54mm) | - |
| Overall Contact Length | 0.325" (8.26mm) | - |
| Insulation Height | 0.390" (9.91mm) | 0.298" (7.57mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Material | Copper Alloy | Phosphor Bronze |
| Insulation Material | Thermoplastic | Liquid Crystal Polymer (LCP) |
| Features | Keying Slot, Pick and Place | Board Lock, Pick and Place |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | 0.5A per Contact |
| Voltage Rating | 30VAC | - |
