Please send RFQ , we will respond immediately.

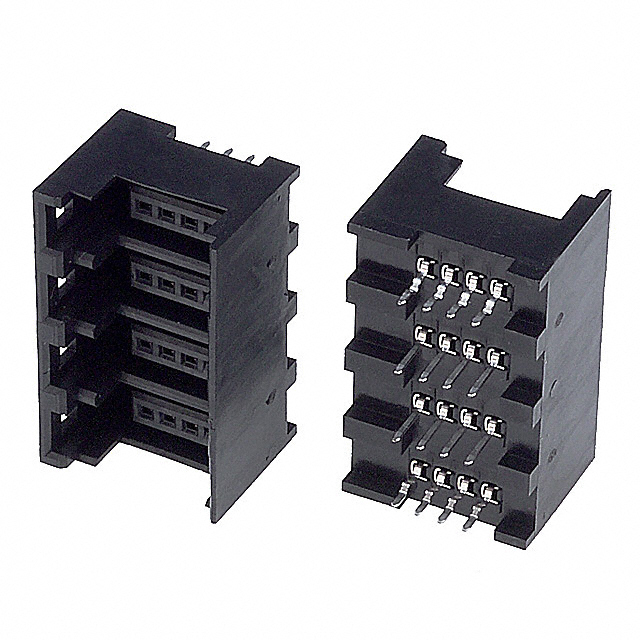

| Part Number | 1473567-4 | 1473565-4 | 1473567-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header | Header |
| Contact Type | Female Socket | Female Socket | Female Socket |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 16 | 4 | 12 |
| Number of Positions Loaded | All | All | All |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 4 | 1 | 4 |
| Row Spacing - Mating | 0.256" (6.50mm) | - | 0.256" (6.50mm) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit, Solder | Press-Fit, Solder | Press-Fit, Solder |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder |
| Contact Finish - Mating | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Insulation Color | Black | Black | Black |
| Insulation Height | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
| Contact Length - Post | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) |
| Operating Temperature | -30°C ~ 75°C | -30°C ~ 75°C | -30°C ~ 75°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin |
| Mated Stacking Heights | - | - | - |
| Ingress Protection | - | - | - |
| Features | - | Board Guide | - |
| Current Rating (Amps) | - | - | - |
| Voltage Rating | 32VDC | 32VDC | 32VDC |
