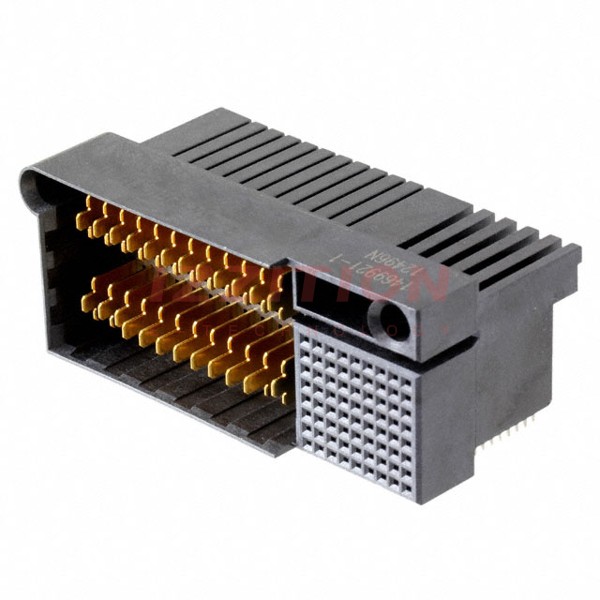

| Part Number | 1469921-1 | 1469922-1 | 1469920-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Usage | Daughtercard | Daughtercard | Backplane |
| Connector Type | - | Plug, Male Blades and Female Sockets | Receptacle, Female Blade Sockets and Male Pins |
| Connector Style | MicroTCA™ | MicroTCA™ | MicroTCA™ |
| Number of Positions | - | 96 | 96 |
| Number of Positions Loaded | - | All | All |
| Pitch | - | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | - | - | - |
| Number of Columns | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole |
| Termination | Solder | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | 72 Signal, 24 Power | 72 Signal, 24 Power |
| Features | - | Mating Guide | Guide Pin |
| Contact Finish | - | Gold | Gold |
| Contact Finish Thickness | - | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - |
