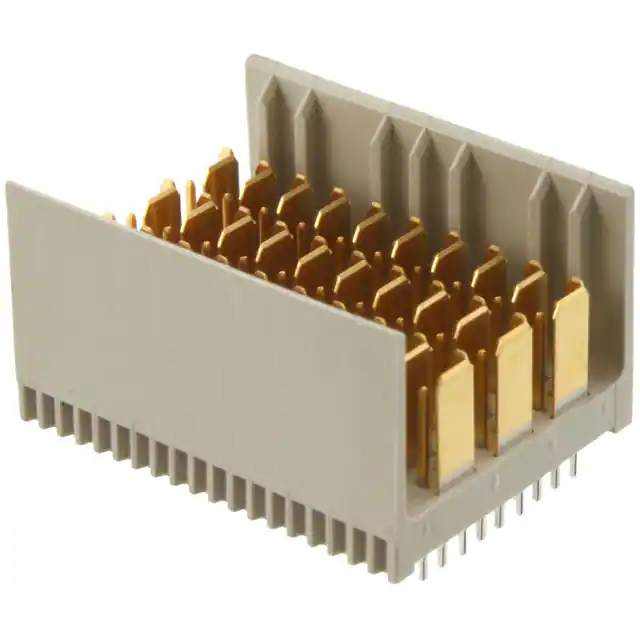

| Part Number | 1469083-1 | 1469183-1 | 1469081-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active |
| Connector Usage | - | Daughtercard | Daughtercard |
| Connector Type | Header, Male Pins and Blades | Header, Male Pins and Blades | Receptacle, Female Sockets |
| Connector Style | High Speed | High Speed | High Speed |
| Number of Positions | 90 | 60 | 60 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 6 | 6 | 6 |
| Number of Columns | 10 | 10 | 10 |
| Mounting Type | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 60 Signal, 30 Ground | - | - |
| Features | Shielded | - | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | - | - | - |
