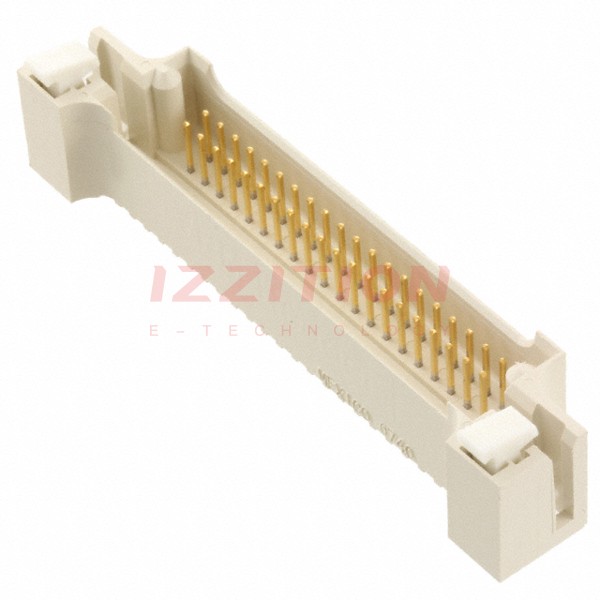

TE Connectivity AMP Connectors 146315-1

Manufacturer No:
146315-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
146315-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 40POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:-
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.550" (13.97mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin-Lead
Contact Material:-
Insulation Material:Thermoplastic, Glass Filled
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):2A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$2.36
352

Please send RFQ , we will respond immediately.
