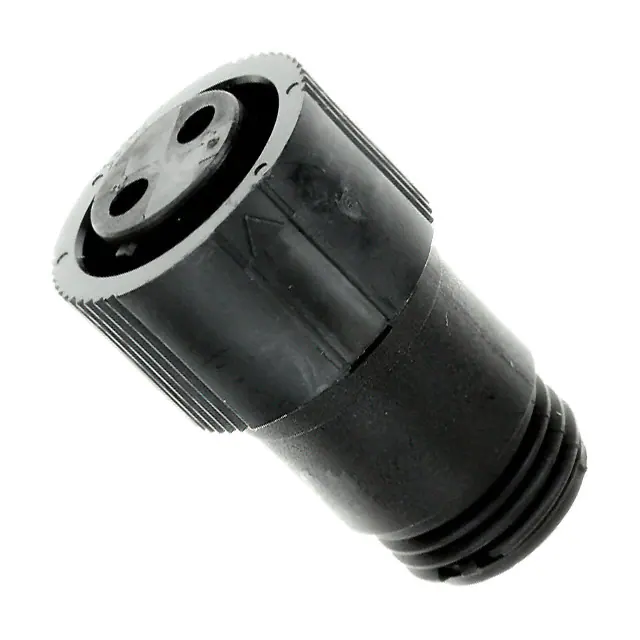

| Part Number | 1445535-3 | 1445538-3 | 1445537-3 | 1445536-3 | 1445539-3 | 1445534-3 | 1445535-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug Housing | Receptacle Housing | Receptacle Housing | Plug Housing | Receptacle Housing | Plug Housing | Plug Housing |
| Type | For Female Sockets | For Male Pins | For Male Pins | For Female Sockets | For Male Pins | For Female Sockets | For Female Sockets |
| Number of Positions | 2 | 2 | 3 | 1 | 1 | 3 | 2 |
| Shell Size - Insert | 8-2 | 8-2 | 8-3 | 8-1 | 8-1 | 8-3 | 8-2 |
| Shell Size, MIL | - | - | - | - | - | - | - |
| Contact Type | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Contact Size | - | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut | - | Bulkhead - Front or Rear Side Nut | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | A | Keyed | A | A | A | A | A |
| Primary Material | - | - | - | - | - | - | - |
| Shell Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Shell Finish | - | - | - | - | - | - | - |
| Housing Color | Black | Black | Black | Black | Black | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | - | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | Coupling Nut | - | - | Coupling Nut | - | Coupling Nut | Coupling Nut |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
