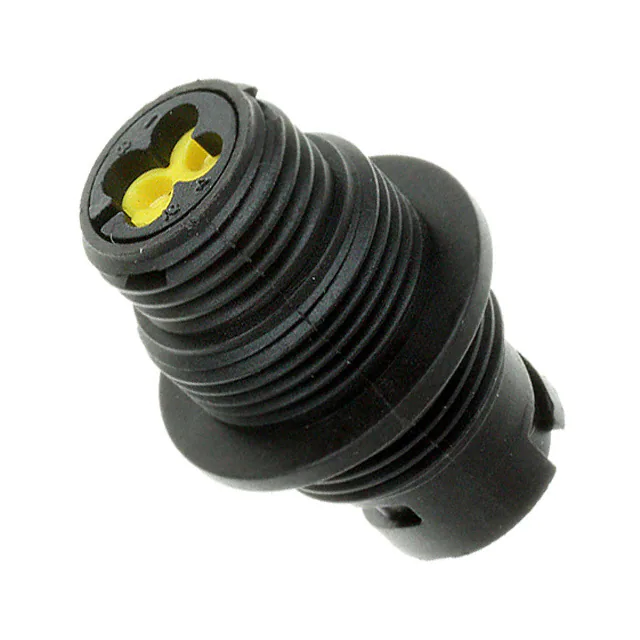

| Part Number | 1445421-1 | 1445421-3 | 1445821-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle Housing | Receptacle Housing | Receptacle Housing |
| Type | For Male Pins | For Male Pins | For Male Pins |
| Number of Positions | 4 | 4 | 8 |
| Shell Size - Insert | 8-4 | 8-4 | 11-8 |
| Shell Size, MIL | - | - | - |
| Contact Type | Crimp | Crimp | Crimp |
| Contact Size | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut | Bulkhead - Front or Rear Side Nut |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Orientation | A | A | A |
| Primary Material | - | - | - |
| Shell Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Shell Finish | - | - | - |
| Housing Color | Black | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
