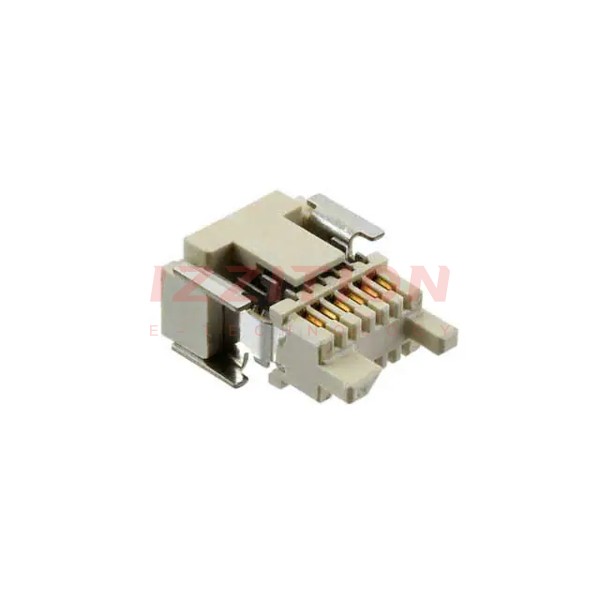

| Part Number | 1445297-4 | 1445297-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Blade Socket | Female Blade Socket |
| Style | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 12 | 6 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.031" (0.80mm) | 0.031" (0.80mm) |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | - | - |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Friction Lock | Friction Lock |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Insulation Color | Natural | Natural |
| Insulation Height | 0.409" (10.40mm) | 0.409" (10.40mm) |
| Contact Length - Post | - | - |
| Operating Temperature | -55°C ~ 85°C | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | Solder Retention | Solder Retention |
| Current Rating (Amps) | - | - |
| Voltage Rating | 30VAC | 30VAC |
