1445088-5
  • Share:

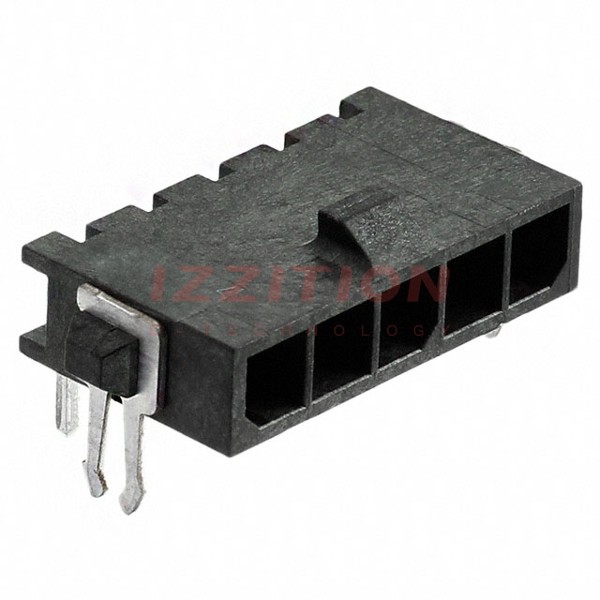

TE Connectivity AMP Connectors 1445088-5

Manufacturer No:
1445088-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1445088-5 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 5POS 3MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:-
Insulation Height:0.152" (3.85mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250V
0 Remaining View Similar

In Stock

-
411

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1445088-5 1445098-5   1445088-7   1445089-5   1445084-5   1445086-5   1445087-5   1445088-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Active Obsolete Obsolete Obsolete Obsolete Active Obsolete
Connector Type Header Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm)
Number of Positions 5 5 7 5 5 5 5 3
Number of Rows 1 1 1 1 1 1 1 1
Row Spacing - Mating - - - - - - - -
Number of Positions Loaded All All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole Surface Mount Surface Mount Through Hole, Right Angle
Termination Solder Solder Solder Solder Press-Fit, Solder Solder Solder Solder
Fastening Type Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp Locking Ramp
Contact Length - Mating - - - - - - - -
Contact Length - Post 0.114" (2.90mm) 0.138" (3.50mm) 0.114" (2.90mm) 0.138" (3.50mm) 0.125" (3.18mm) - - 0.114" (2.90mm)
Overall Contact Length - - - - - - - -
Insulation Height 0.152" (3.85mm) 0.152" (3.85mm) 0.152" (3.85mm) 0.152" (3.85mm) 0.364" (9.25mm) 0.364" (9.25mm) 0.364" (9.25mm) 0.152" (3.85mm)
Contact Shape Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm) 30.0µin (0.76µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm)
Contact Finish - Post Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead Tin-Lead
Contact Material Brass Brass Brass Brass Brass Brass Brass Brass
Insulation Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Features Board Lock Board Lock Board Lock Board Lock Board Guide Board Lock, Pick and Place Pick and Place, Solder Retention Board Lock
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
Ingress Protection - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black
Current Rating (Amps) Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge Varies by Wire Gauge
Voltage Rating 250V 250V 250V 250V 250V 250V 250V 250V
