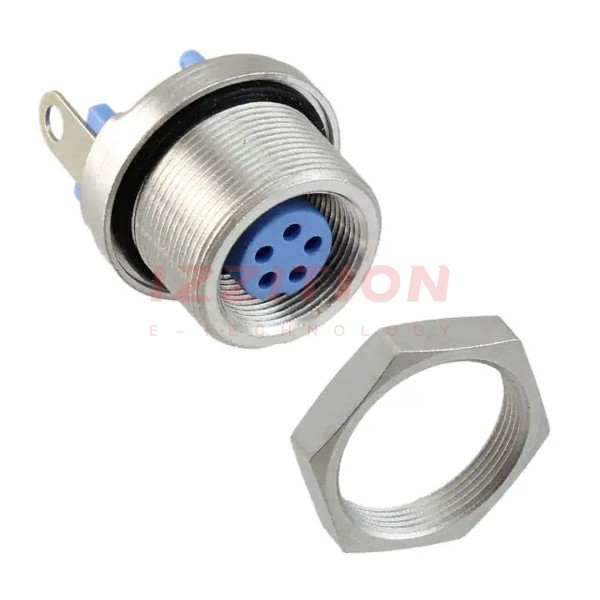

| Part Number | 1437720-3 | 1437720-9 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 5 | 8 |
| Shell Size - Insert | - | - |
| Shell Size, MIL | - | - |
| Mounting Type | Panel Mount | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Brass | Brass |
| Shell Finish | Tribor | Tribor |
| Contact Finish - Mating | - | - |
| Color | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Features | - | - |
| Shielding | Shielded | Shielded |
| Current Rating (Amps) | 3A | 1A |
| Voltage Rating | 60VAC | 60VAC |
| Cable Opening | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
