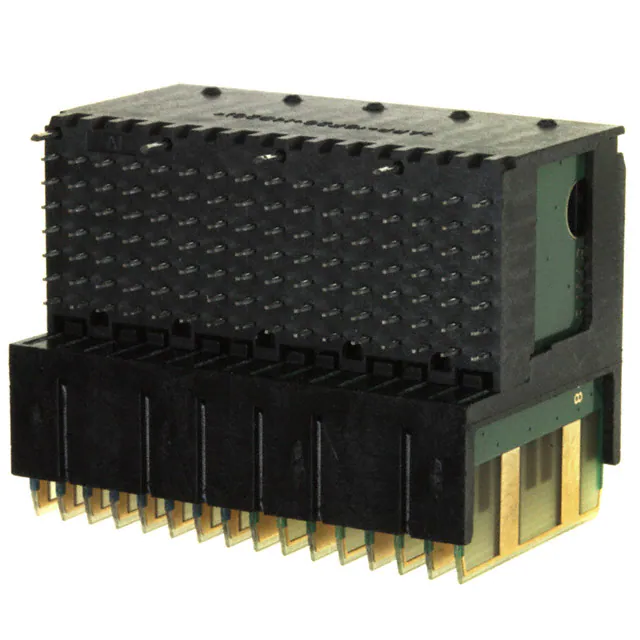

| Part Number | 1410970-3 | 1410971-3 | 1410975-3 | 1410972-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | Daughtercard | Daughtercard | Daughtercard | Daughtercard |
| Connector Type | Plug, Male Blades | Plug, Male Blades | Plug, Male Blades | Plug, Male Blades |
| Connector Style | VITA 46, Center | VITA 46, Half, Left End | MULTIGIG, Center | VITA 46, Half, Left End |
| Number of Positions | 112 | 56 | 112 | 56 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Number of Rows | 7 | 7 | 7 | 7 |
| Number of Columns | 16 | 8 | 16 | 8 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Solder |
| Contact Layout, Typical | 16 Signal Pairs, 44 Single Signal, 36 Ground | 16 Signal Pairs, 4 Single Signal, 20 Ground | 32 Signal Pairs, 8 Single Signal, 40 Ground | 40 Single Signal, 16 Ground |
| Features | Board Guide | Board Guide | Board Guide | Board Guide |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) |
| Color | Black | Black | Black | Black |
