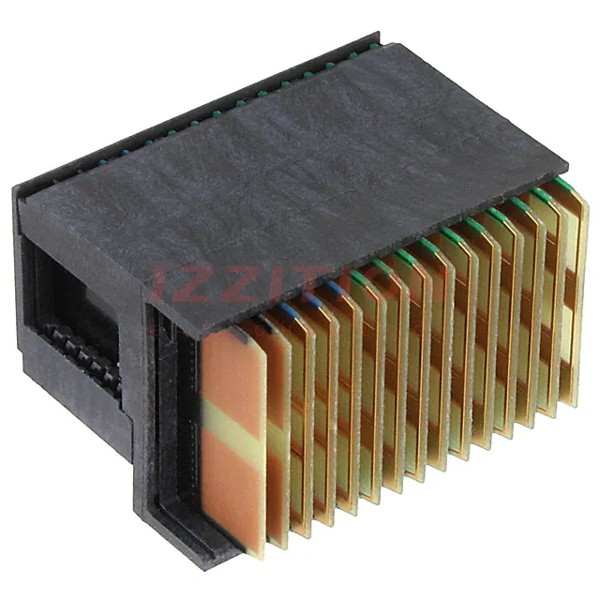

TE Connectivity AMP Connectors-1410968-3 - Backplane Connectors - Specialized Product Specifications and Latest Quotes

Connector Usage:	Daughtercard
Connector Type:	Plug, Male Blades
Connector Style:	VITA 46, Center
Number of Positions:	112
Number of Positions Loaded:	105
Pitch:	0.071" (1.80mm)
Number of Rows:	7
Number of Columns:	16
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Press-Fit
Contact Layout, Typical:	20 Signal Pairs, 20 Signal, 12 Power, 38 Ground, 2 Mechanical
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	50.0µin (1.27µm)
Color:	Black

TE Connectivity AMP Connectors 1410968-3
