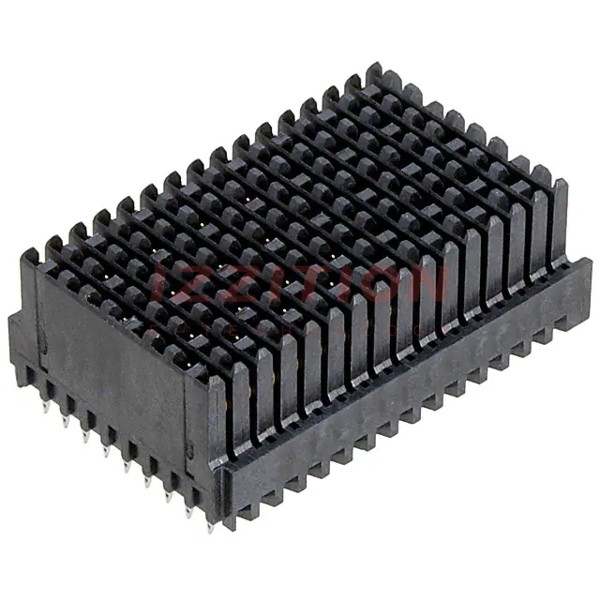

| Part Number | 1410966-1 | 1410964-1 | 1410965-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | Backplane | Backplane | Backplane |
| Connector Type | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets |
| Connector Style | VITA 46, Center | VITA 46, Center | VITA 46, Center |
| Number of Positions | 144 | 144 | 144 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Number of Rows | 9 | 9 | 9 |
| Number of Columns | 16 | 16 | 16 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - |
| Features | - | - | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) |
| Color | Black | Black | Black |
