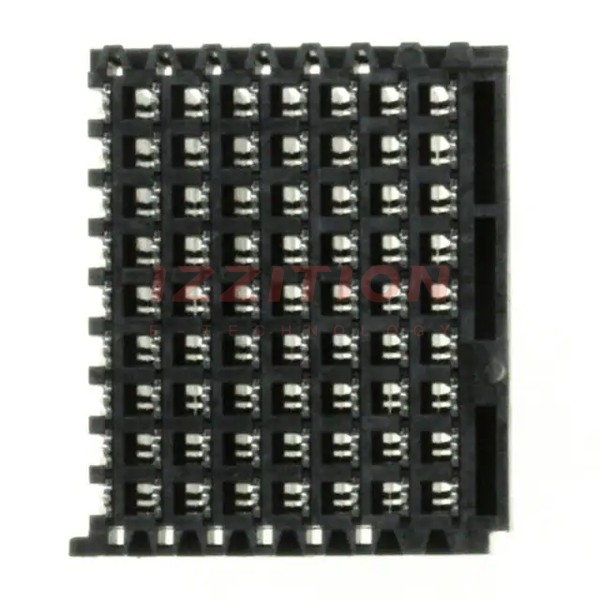

| Part Number | 1410186-1 | 1410187-1 | 1410196-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Usage | Backplane | Daughtercard | - |
| Connector Type | Receptacle, Female Blade Sockets | Plug, Male Blades | Receptacle, Female Blade Sockets |
| Connector Style | VITA 41/46, Half, Left End | VITA 46, Center | - |
| Number of Positions | 72 | 112 | - |
| Number of Positions Loaded | All | All | - |
| Pitch | 0.071" (1.80mm) | 0.071" (1.80mm) | - |
| Number of Rows | 9 | 7 | - |
| Number of Columns | 8 | 16 | - |
| Mounting Type | Through Hole | Board Edge, Through Hole, Right Angle | - |
| Termination | Press-Fit | Press-Fit | - |
| Contact Layout, Typical | - | 32 Signal Pairs, 8 Single Signal, 40 Ground | - |
| Features | Board Guide | Board Guide | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) | 30.0µin (0.76µm) | - |
| Color | Black | Black | Black |
