Please send RFQ , we will respond immediately.

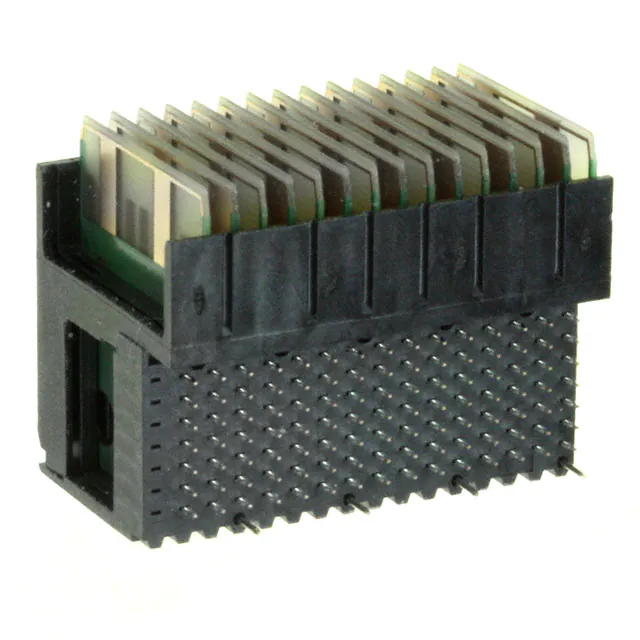

| Part Number | 1410147-1 | 1410187-1 | 1410137-1 | 1410140-1 | 1410141-1 | 1410142-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Usage | Daughtercard | Daughtercard | Daughtercard | Backplane | Backplane | Backplane |
| Connector Type | Plug, Male Blades | Plug, Male Blades | Plug, Male Blades | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets | Receptacle, Female Blade Sockets |
| Connector Style | VITA 41, Center | VITA 46, Center | VITA 41, Center | VITA 46, Center | VITA 41, Left End | VITA 41/46, Right End |
| Number of Positions | 105 | 112 | 192 | 144 | 144 | 144 |
| Number of Positions Loaded | All | All | All | All | All | All |
| Pitch | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Number of Rows | 7 | 7 | 12 | 9 | 9 | 9 |
| Number of Columns | 15 | 16 | 16 | 16 | 16 | 16 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 30 Signal Pairs, 8 Single Signal, 37 Ground | 32 Signal Pairs, 8 Single Signal, 40 Ground | 48 Signal Pairs, 96 Ground | - | - | - |
| Features | Board Guide | Board Guide | Board Guide | - | Board Guide | Board Guide |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) | 50.0µin (1.27µm) |
| Color | Black | Black | Black | Black | Black | Black |
