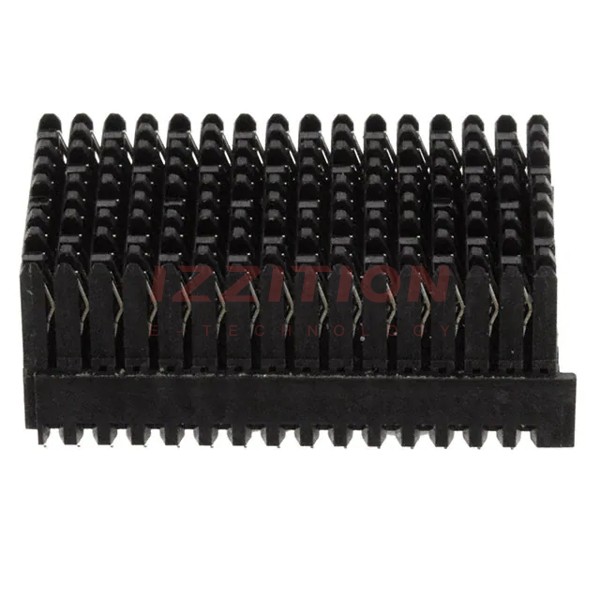

| Part Number | 1410135-1 | 1410137-1 | 1410139-1 | 1410138-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Usage | Backplane | Daughtercard | Daughtercard | Daughtercard |
| Connector Type | Receptacle, Female Blade Sockets | Plug, Male Blades | Plug, Male Blades | Plug, Male Blades |
| Connector Style | VITA 41, Center | VITA 41, Center | VITA 41, Right End | VITA 41, Left End |
| Number of Positions | 135 | 192 | 192 | 192 |
| Number of Positions Loaded | All | All | All | All |
| Pitch | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
| Number of Rows | 9 | 12 | 12 | 12 |
| Number of Columns | 15 | 16 | 16 | 16 |
| Mounting Type | Through Hole | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | 48 Signal Pairs, 96 Ground | 48 Signal Pairs, 96 Ground | 48 Signal Pairs, 96 Ground |
| Features | - | Board Guide | Board Guide | Board Guide |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black | Black |
