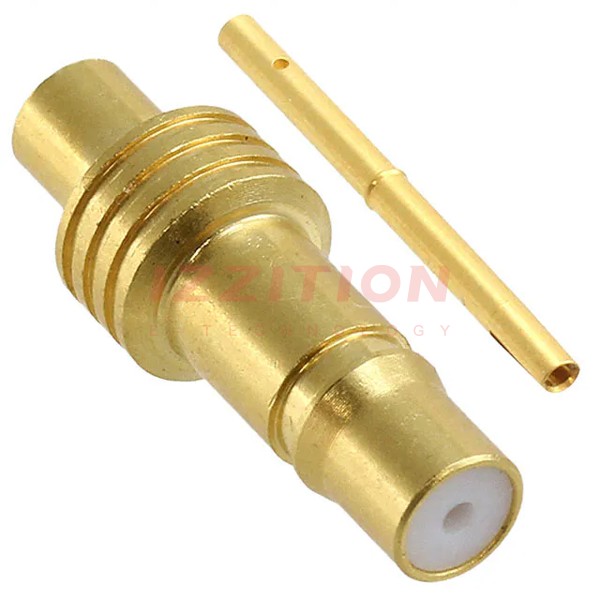

| Part Number | 1408348-1 | 1408349-1 | 1408148-1 | 1408338-1 | 1408340-1 | 1408341-1 | 1408346-1 | 1408347-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active | Active | Obsolete | Obsolete | Active |
| Connector Style | QMA | QMA | MMCX | QMA | QMA | QMA | QMA | QMA |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Receptacle, Female Socket | Receptacle, Female Socket | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Crimp | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Crimp | Crimp | Solder | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Bulkhead - Front Side Nut | - | - | Bulkhead - Rear Side Nut | Flange | - | - |
| Cable Group | RG-402 (.141" Semi Rigid) | RG-402 (.141" Semi Rigid) | RG-178, 196 | RG-174, 187, 316 | - | - | RG-402 (.141" Semi Rigid) | RG-402 (.141" Semi Rigid) |
| Fastening Type | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | Extended Insulation | Extended Insulation | - | - |
| Housing Color | Gold | Gold | - | Silver | Silver | Silver | Gold | Gold |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | - | Beryllium Copper | Beryllium Copper | Beryllium Copper | Brass | Brass |
