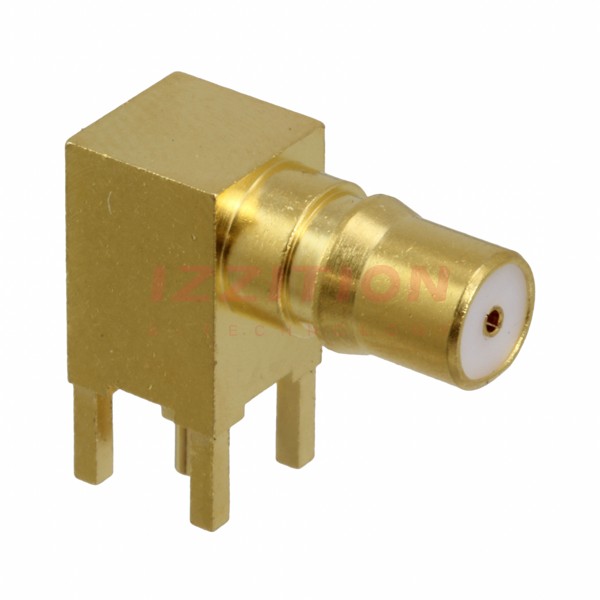

| Part Number | 1408337-1 | 1408339-1 | 1408347-1 | 1408338-1 | 1408332-1 | 1408333-1 | 1408336-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Obsolete | Active |
| Connector Style | QMA | QMA | QMA | QMA | QMA | QMA | QMA |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Crimp | Solder | Crimp | Solder | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Through Hole, Right Angle | Panel Mount | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Bulkhead - Front Side Nut | - | - | - | - | - |
| Cable Group | - | RG-174, 188, 316 | RG-402 (.141" Semi Rigid) | RG-174, 187, 316 | - | RG-174, 188, 316 | RG-174, 188, 316 |
| Fastening Type | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - |
| Housing Color | Gold | Silver | Gold | Silver | Gold | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Brass | Beryllium Copper | Beryllium Copper | Brass | Brass |
