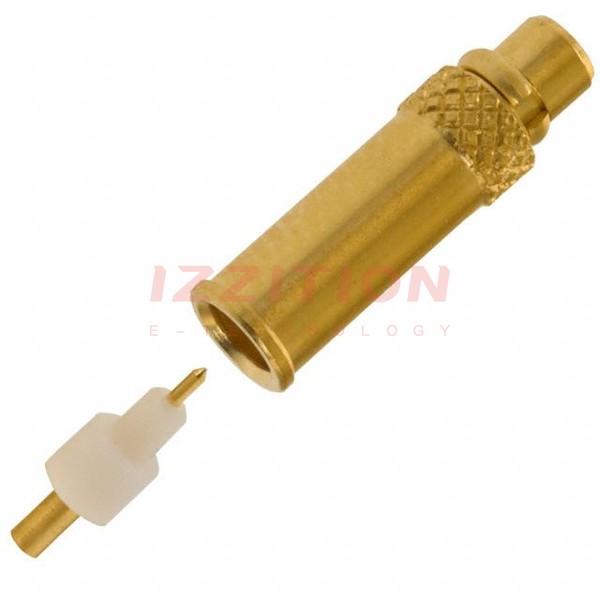

| Part Number | 1408313-1 | 1408333-1 | 1408314-1 | 1408312-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Connector Style | MMCX | QMA | MMCX | MMCX |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder | Crimp |
| Shield Termination | Solder | Crimp | Solder | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - |
| Cable Group | RG-405 (.085" Semi Rigid) | RG-174, 188, 316 | RG-405 (.085" Semi Rigid) | RG-316 |
| Fastening Type | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 6 GHz | 6 GHz | 6 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Gold | Silver | Gold | Gold |
| Ingress Protection | - | - | - | - |
| Center Contact Material | - | Brass | - | - |
