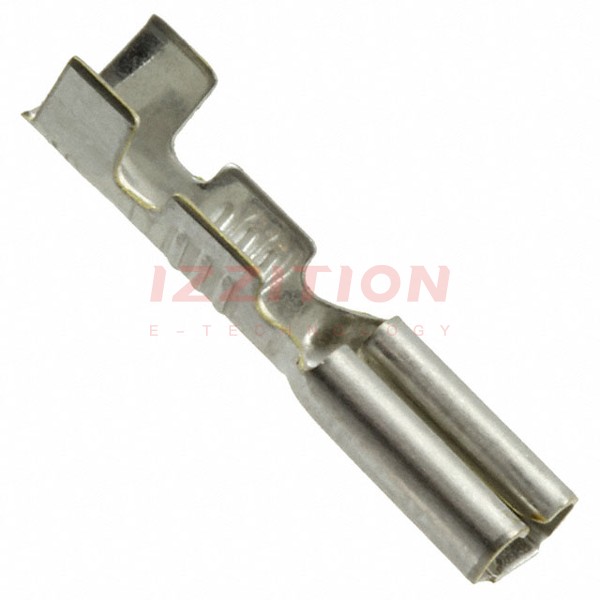

| Part Number | 140825-2 | 140805-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.197" (5.00mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.031" (0.79mm) |
| Tab Length | 0.250" (6.35mm) | 0.311" (7.90mm) |
| Length - Overall | 0.634" (16.10mm) | 0.850" (21.59mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 17-22 AWG | 17-22 AWG |
| Insulation | Non-Insulated | Non-Mating End Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | Red |
| Contact Material | Brass | Brass |
| Contact Finish | Tin | Silver |
