Please send RFQ , we will respond immediately.

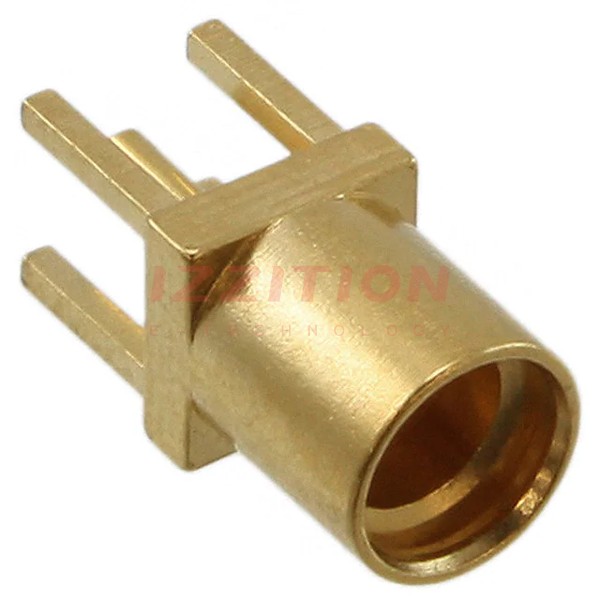

| Part Number | 1408150-1 | 1408151-1 | 1408152-1 | 1408120-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Connector Style | MMCX | MMCX | MMCX | MMCX |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Through Hole | Through Hole, Right Angle | Board Edge, Cutout; Surface Mount | Board Edge, Cutout; Surface Mount |
| Mounting Feature | - | - | - | - |
| Cable Group | - | - | - | - |
| Fastening Type | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 6 GHz | 6 GHz | 6 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Gold | Gold | Gold | Gold |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Brass |
