Please send RFQ , we will respond immediately.

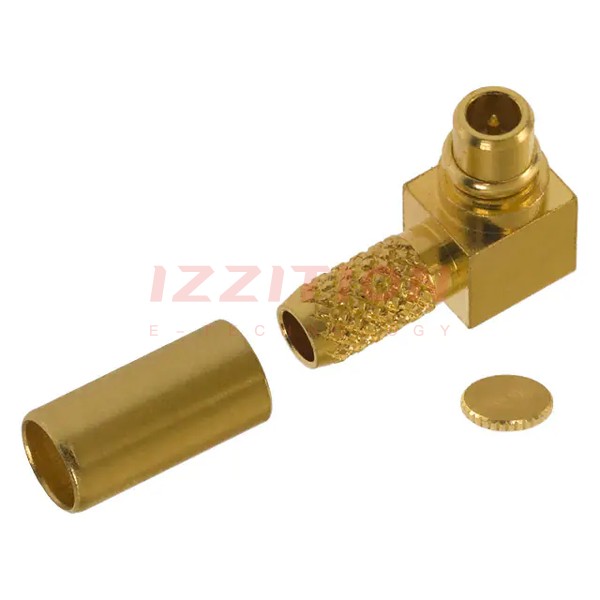

| Part Number | 1408149-1 | 1408149-2 | 1408349-1 | 1408149-3 | 1408148-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| Connector Style | MMCX | MMCX | QMA | MMCX | MMCX |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder | Solder | Crimp |
| Shield Termination | Crimp | Crimp | Solder | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Panel Mount | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | - | Bulkhead - Front Side Nut | - | - |
| Cable Group | RG-178, 196 | RG-316 | RG-402 (.141" Semi Rigid) | RD-316 | RG-178, 196 |
| Fastening Type | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - |
| Housing Color | - | - | Gold | - | - |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | - | - | Beryllium Copper | - | - |
