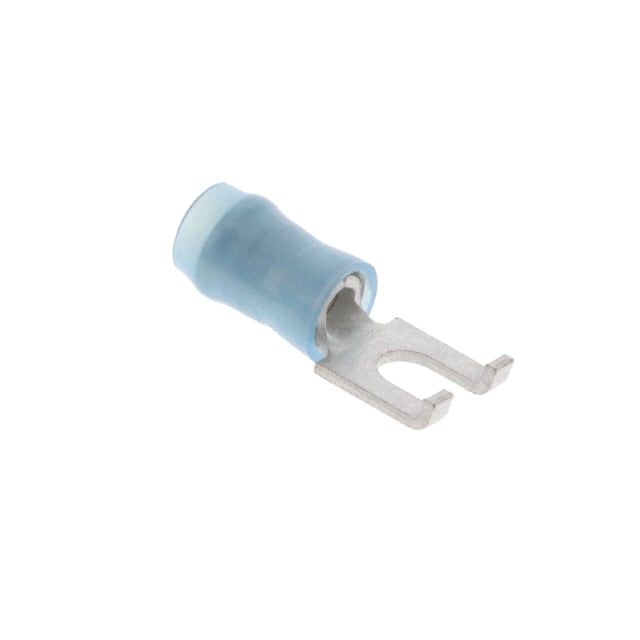

| Part Number | 1377174-1 | 1377174-3 | 1377174-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Flanged | Flanged | Standard |
| Stud/Tab Size | 6 Stud | 10 Stud | M4.5 Stud |
| Width - Outer Edges | 0.294" (7.47mm) | 0.294" (7.47mm) | 0.315" (8.00mm) |
| Length - Overall | 0.768" (19.51mm) | 0.768" (19.51mm) | 1.228" (31.19mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Serrated Termination | - | Serrated Termination |
| Color | Blue | Blue | Yellow |
| Contact Finish | Tin | Tin | Tin |
| Contact Material | Copper | Copper | Copper |
