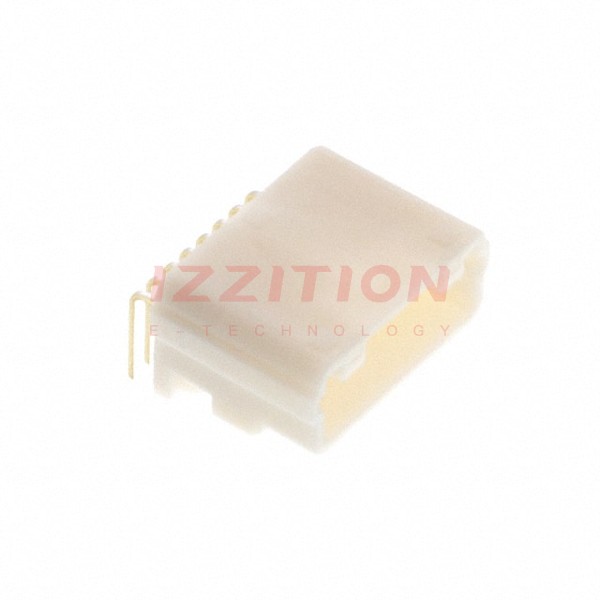

| Part Number | 1376366-2 | 1376366-8 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.087" (2.20mm) | 0.087" (2.20mm) |
| Number of Positions | 8 | 8 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | 0.217" (5.50mm) | 0.217" (5.50mm) |
| Contact Length - Post | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Syndiotactic Polystyrene (SPS), Glass Filled |
| Features | Mounting Brackets | Mounting Brackets |
| Operating Temperature | -30°C ~ 100°C | -30°C ~ 100°C |
| Ingress Protection | - | - |
| Material Flammability Rating | - | - |
| Insulation Color | Natural | Natural |
| Current Rating (Amps) | - | 5A |
| Voltage Rating | - | - |
