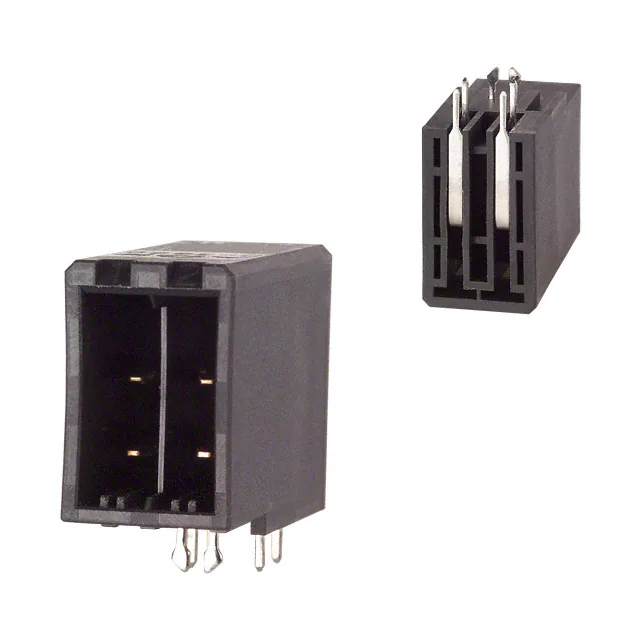

| Part Number | 1376133-2 | 1376135-2 | 1376136-2 | 1376137-2 | 1376113-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header |
| Contact Type | Tab | Tab | Tab | Tab | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.087" (2.20mm) |
| Number of Positions | 4 | 3 | 6 | 20 | 40 |
| Number of Rows | 2 | 1 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.200" (5.08mm) | - | - | - | 0.118" (3.00mm) |
| Number of Positions Loaded | All | All | All | All | All |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Latch Holder |
| Contact Length - Mating | - | - | - | - | 0.217" (5.50mm) |
| Contact Length - Post | 0.150" (3.81mm) | 0.131" (3.33mm) | 0.134" (3.40mm) | 0.134" (3.40mm) | 0.157" (4.00mm) |
| Overall Contact Length | - | - | - | - | - |
| Insulation Height | 0.774" (19.67mm) | 0.431" (10.95mm) | 0.579" (14.70mm) | 0.579" (14.70mm) | 0.921" (23.39mm) |
| Contact Shape | Rectangular | Rectangular | Rectangular | Rectangular | Square |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Tin |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Brass |
| Insulation Material | Thermoplastic, Polyester, Glass Filled | Thermoplastic, Polyester, Glass Filled | Thermoplastic, Polyester, Glass Filled | Thermoplastic, Polyester, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Mounting Flange |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -30°C ~ 105°C |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 HB |
| Insulation Color | Black | Black | Black | Black | Natural |
| Current Rating (Amps) | - | 5A | 5A | 5A | - |
| Voltage Rating | 600V | 250V | 250VAC | 250VAC | 12VDC |
