Please send RFQ , we will respond immediately.

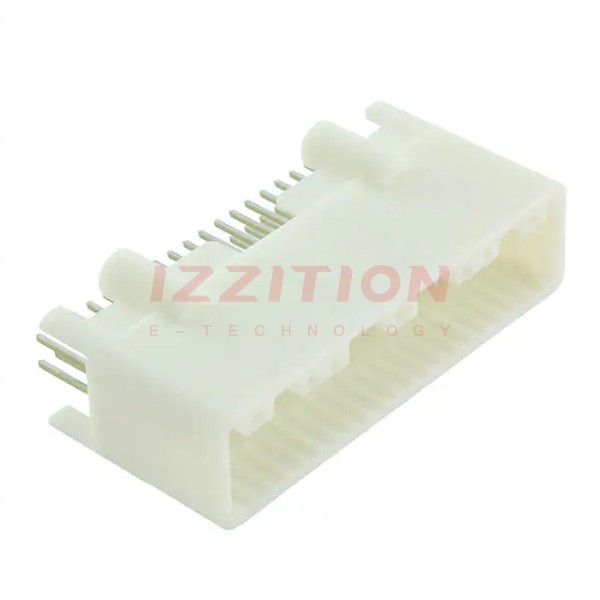

| Part Number | 1376113-2 | 1376133-2 | 1376113-6 | 1376113-5 | 1376113-8 | 1376111-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Last Time Buy | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Tab | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.087" (2.20mm) | 0.200" (5.08mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) | 0.087" (2.20mm) |
| Number of Positions | 40 | 4 | 40 | 40 | 40 | 24 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) | 0.200" (5.08mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Number of Positions Loaded | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Board or Cable | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Holder | Detent Lock | Latch Holder | Latch Holder | Latch Holder | Latch Holder |
| Contact Length - Mating | 0.217" (5.50mm) | - | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) | 0.217" (5.50mm) |
| Contact Length - Post | 0.157" (4.00mm) | 0.150" (3.81mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Overall Contact Length | - | - | - | - | - | - |
| Insulation Height | 0.921" (23.39mm) | 0.774" (19.67mm) | 0.921" (23.39mm) | 0.921" (23.39mm) | 0.921" (23.39mm) | 0.921" (23.39mm) |
| Contact Shape | Square | Rectangular | Square | Square | Square | Square |
| Contact Finish - Mating | Tin | Gold | - | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | 15.0µin (0.38µm) | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | - | Tin | Tin |
| Contact Material | Brass | Copper Alloy | Brass | Brass | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Thermoplastic, Polyester, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | - | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Mounting Flange | Board Lock | Mounting Flange | Mounting Flange | Mounting Flange | Mounting Flange |
| Operating Temperature | -30°C ~ 105°C | -55°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 HB | UL94 V-0 | - | - | UL94 HB | UL94 HB |
| Insulation Color | Natural | Black | Natural | Natural | Natural | Natural |
| Current Rating (Amps) | - | - | - | - | - | - |
| Voltage Rating | 12VDC | 600V | 12VDC | 12VDC | 12VDC | 12VDC |
