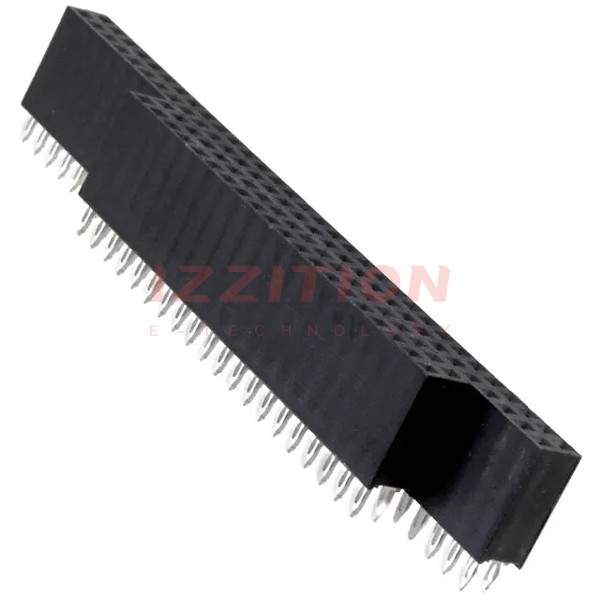

| Part Number | 1375796-4 | 1375799-4 | 1375798-4 | 1375794-4 | 1375795-4 | 1375796-1 | 1375796-2 | 1375796-3 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Connector Usage | - | - | - | - | - | - | - | - |
| Connector Type | Non-Stackthrough, Unkeyed (PC/104) | Stackthrough, Unkeyed (PC/104) | Non-Stackthrough, Unkeyed (PC/104) | Non-Stackthrough, Unkeyed (PC/104) | Stackthrough, Unkeyed (PC/104) | Non-Stackthrough, Keyed (PC/104) | Non-Stackthrough, Unkeyed (PC/104) | Non-Stackthrough, Keyed (PC/104) |
| Connector Style | PC/104 | PC/104 Plus | PC/104 Plus | PC/104 | PC/104 | PC/104 | PC/104 | PC/104 |
| Number of Positions | 104 | 120 | 120 | 104 | 104 | 104 | 104 | 104 |
| Number of Positions Loaded | All | All | All | All | All | 102 | All | 102 |
| Pitch | 0.100" (2.54mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of Columns | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Termination | Press-Fit | Press-Fit | Press-Fit | Press-Fit | Press-Fit, Long Post | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | - | - | - | - | - | - | - | - |
| Features | - | - | Screwlocks (2) | Screwlocks (2) | - | - | - | - |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) | 15.0µin (0.38µm) |
| Color | Black | Black | Black | Black | Black | Black | Black | Black |
