1355505-1
  • Share:

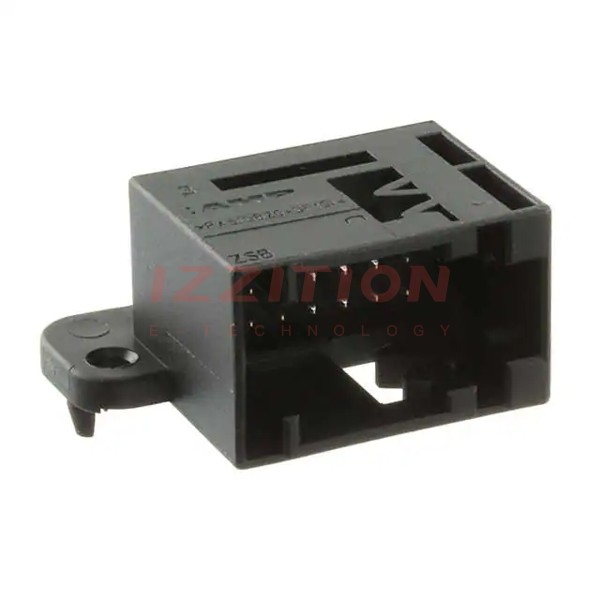

TE Connectivity AMP Connectors 1355505-1

Manufacturer No:
1355505-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1355505-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 12POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:-
Insulation Height:0.626" (15.90mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Lock, Mounting Flange
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$4.25
174

Please send RFQ , we will respond immediately.
