1318772-2
  • Share:

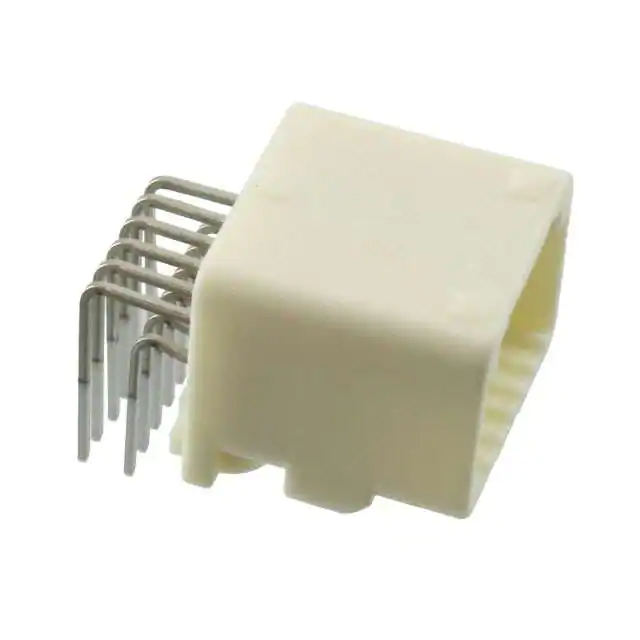

TE Connectivity AMP Connectors 1318772-2

Manufacturer No:
1318772-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1318772-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 12POS 2.2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.087" (2.20mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.217" (5.50mm)
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.610" (15.49mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Mounting Flange
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 HB
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:12VDC
0 Remaining View Similar

In Stock

$3.02
46

Please send RFQ , we will respond immediately.
