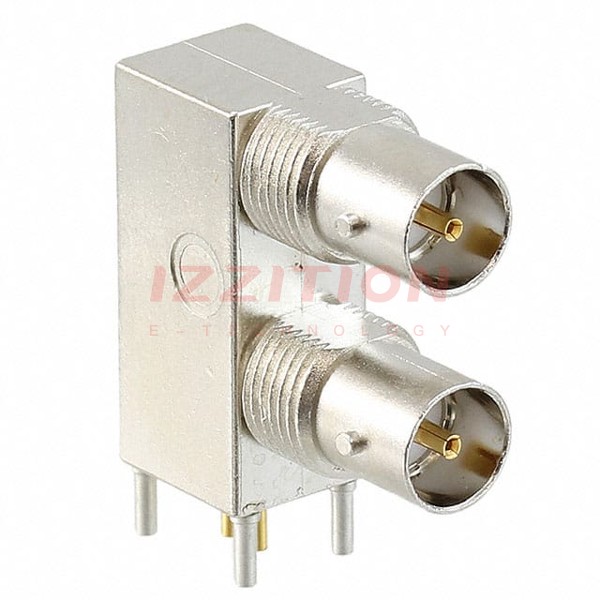

| Part Number | 1274684-1 | 1274694-1 | 1274584-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete |
| Connector Style | BNC, Mini | SMA | BNC, Mini |
| Connector Type | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Solder | Crimp | Solder |
| Impedance | 75Ohm | 50Ohm | 75Ohm |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Free Hanging (In-Line), Right Angle | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | - | Bulkhead - Front Side Nut |
| Cable Group | - | RG-316 | - |
| Fastening Type | Bayonet Lock | Snap-On | Bayonet Lock |
| Frequency - Max | 2 GHz | 6 GHz | 2 GHz |
| Number of Ports | 2 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Silver | Gold | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Phosphor Bronze | Beryllium Copper | Phosphor Bronze |
