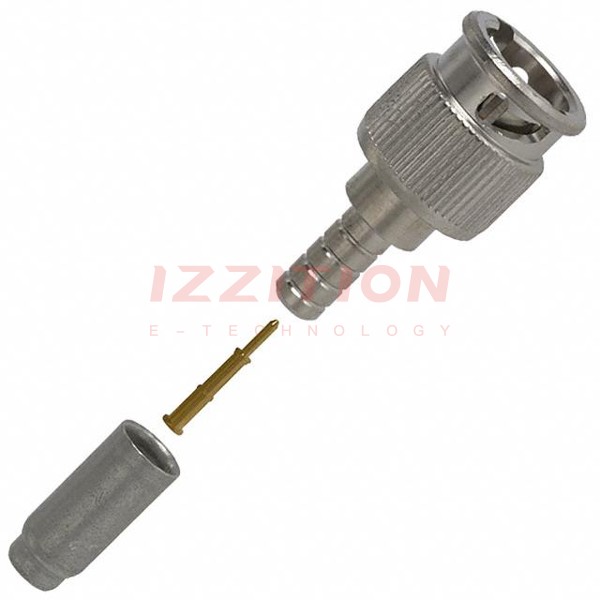

| Part Number | 1274563-3 | 1274568-3 | 1274566-3 | 1274563-1 | 1274563-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Connector Style | BNC, Mini | BNC, Mini | BNC, Mini | BNC, Mini | BNC, Mini |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Crimp | Crimp | Solder | Crimp | Crimp |
| Shield Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Impedance | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Front Side Nut | - | - | - |
| Cable Group | RG-179 | RG-179 | RG-179 | AT&T 735A | AT&T 734A |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 2 GHz | 2 GHz | 2 GHz | 2 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Brass | Phosphor Bronze | Brass | Brass | Brass |
