1241434-1
  • Share:

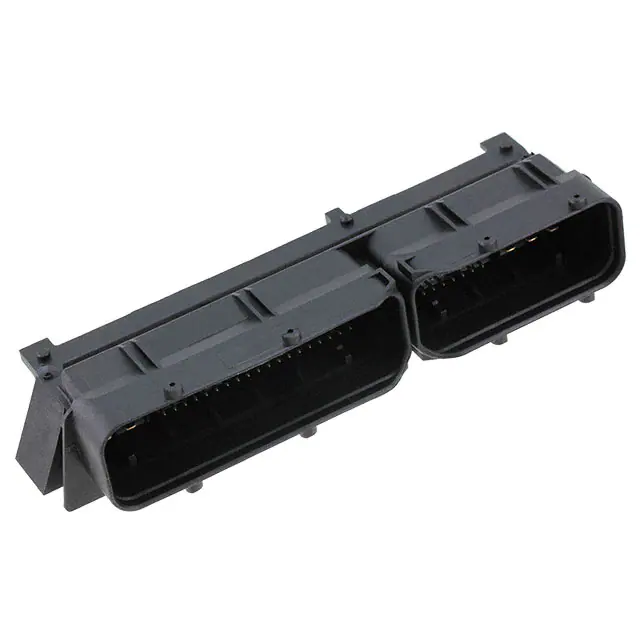

TE Connectivity AMP Connectors 1241434-1

Manufacturer No:
1241434-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1241434-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 121POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:121 (108 + 13 Power)
Number of Rows:4
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:1.224" (31.10mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Lock
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$16.30
12

Please send RFQ , we will respond immediately.
