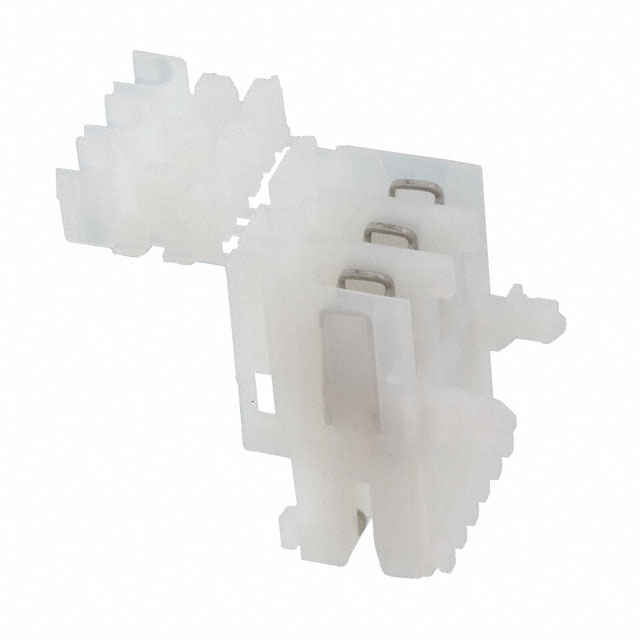

| Part Number | 1241172-3 | 1241172-5 | 1241170-3 | 1241171-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Blade Pin | Blade Pin |
| Number of Positions | 3 | 5 | 3 | 3 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Cable Termination | IDC | IDC | IDC | IDC |
| Wire Type | Discrete | Discrete | Discrete | Discrete |
| Wire Gauge | - | - | - | - |
| Features | Mates to PCB | Mates to PCB | Dual Wire Exit | Dual Wire Exit |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - |
| Color | Natural | Natural | Natural | Natural |
