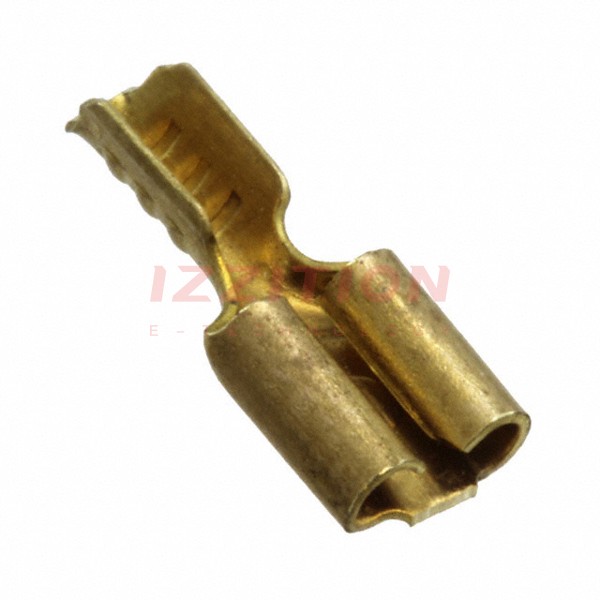

| Part Number | 1217198-1 | 1217118-1 | 1217138-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active |
| Terminal Type | Standard | Standard | Angled - 90°, Flag |
| Gender | Female | Male | Female |
| Tab Width | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.016" (0.41mm) | 0.020" (0.51mm) | 0.025" (0.64mm) |
| Tab Length | 0.140" (3.56mm) | 0.285" (7.24mm) | - |
| Length - Overall | 0.327" (8.31mm) | 0.570" (14.48mm) | - |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 22-26 AWG | 16-20 AWG | 18-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | - | Tin | Tin |
